"Corona-Projekt" Nr.3 - Transplantation eines Taronar 45mm f1.8 aus der Taron Auto-EE

"Corona Project" #3 - Transplantation of a Taronar 45mm f1.8 from the Taron Auto-EE

22.04.2020

Ja, die schlimme Corona-Zeit hat manchmal auch ihr Gutes.  Man kommt dazu, schon lange geplante Projekte endlich umzusetzen. Bei mir war dies die Transplantation der Objektive aus 3 defekten Sucherkameras der 50er und 60er- Jahre. Interessant an diesen Objektiven sind ihre speziellen Abbildungseigenschaften.

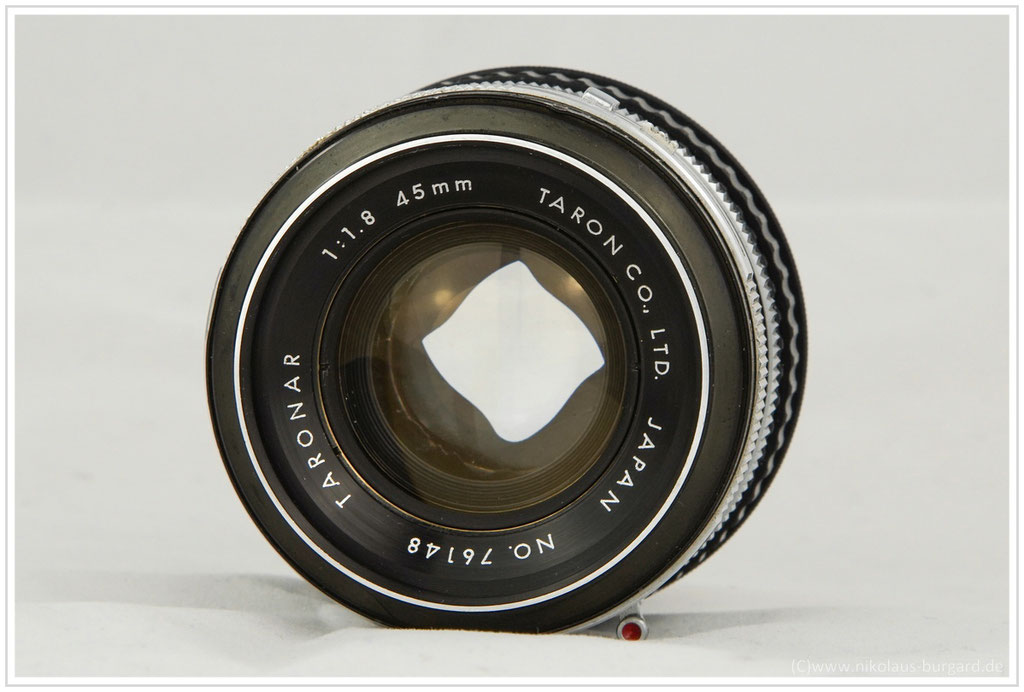

Als drittes Objektiv habe ich ein Taronar 45mm f1.8 aus einer Taron Auto EE transplantiert. Der Clou an diesem Objektiv ist seine geschwungene, viereckige Blende, die das Bokeh einzigartig wirken lässt – so etwas hatte ich vorher noch nicht gesehen. Dazu musste ich das Objektiv aus der Kamera ausbauen und es anschließend mit dem Linsenschlüssel öffnen, um den im Objektiv verbauten Verschluss zu entfernen.



Anschließend habe ich das Objektiv mit 2-Komponenten-Kleber mit einem 15-26mm-M42-Helicoid „verheiratet“, um überhaupt eine Fokussierung möglich zu machen (Die ursprüngliche Fokussierung ist an der Kamera verbaut). So komme ich nun von unendlich bis in den Nahbereich (nun liegt die Nahgrenze bei ca. 40cm!. An den M42-Helicoid habe ich eine M42-Sony E-Mount-Anschlussplatte angebracht, um sie mit meinen Sony-Kameras benutzen zu können, hier wäre aber auch z.B. eine Fuji-Anschlußplatte möglich.



04/22/2020

Yes, the bad Corona period sometimes has its good side. You get to finally implement projects that have been planned for a long time. For me, this was the transplantation of the lenses from 3 defective viewfinder cameras from the 50s and 60s. What is interesting about these lenses is their special imaging properties.



As a third lens, I transplanted a Taronar 45mm f1.8 from a Taron Auto EE. The highlight of this lens is its curved square aperture, which makes the bokeh look unique - something I hadn't seen before. To do this, I had to remove the lens from the camera and then open it with the lens wrench to remove the shutter built into the lens.



Then I "married" the lens with a 15-26mm M42 helicoid using 2-component glue to make focusing possible at all (the original focusing unit is built into the camera). So I can now go from infinity to close-up (now the close-up limit is about 40cm!. I attached an M42 Sony E-mount connection plate to the M42 Helicoid in order to be able to use it with my Sony cameras, a Fuji connection plate, for example, would also be possible here.
